DRIVE LINES & PARTS
DRIVELINES
Custom front and rear drivelines made to order.
Large selection of used driveshafts and C/V shafts available.
CALL FOR PRICEING
BACK TO THE PARTS PAGE

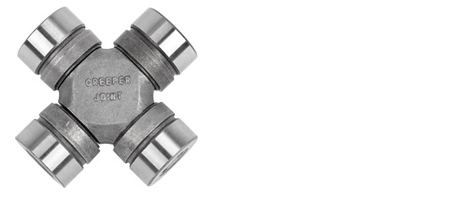

Creeper JointTM Drive Shaft U-Joints
Yodaman now offers the strongest U-Joint on the market. We took the stock U-joint and kicked it up a notch by adding additional material to center of the joint. The Creeper JointTM has been tested to 4,700 ft-lbs of torque in our axle testing machine. These U-joints fit most 1979-1995 4wd applications. Includes four install clips and Zerk grease fitting (not shown in photo).
BACK TO THE PARTS PAGE

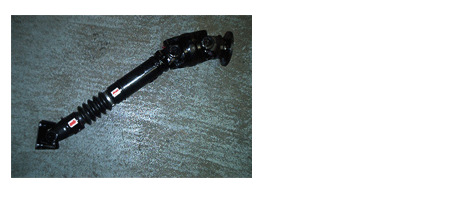

Long Spine
Super flexible suspension systems require more slip spline then the stock drive shaft is able to provide. The result with a stock slip spline is the drive shaft pulls apart on the trail. This long spline kit is designed to replace the stock slip section and nearly doubles the useable slip length. To install this kit the stock slip section and tubing is cut off and replaced with our long spline section and new tubing.
Our drive shaft kits are also stronger then stock. Our testing shows that a stock drive shaft will twist off and fail at after a maximum load of 3,900 ft/lbs of torque is appliedOur shaft kits test to a maximum of 4800 ft/lbs or torque. This is accomplished in two ways; first we increase the size of the material both on the inside and outside of the slider section. Then we specially heat-treat the material to increase its strength.
Each kit comes with a Heavy Duty U-joint installed. Full circle retaining rings are installed to securely hold the u-joint in place.This product is a heavy duty replacement part and is not recommended for applications requiring a balanced driveshaft. Not recommended for use on the street or speeds over 50mph.
