EXTREME SUSPENSION

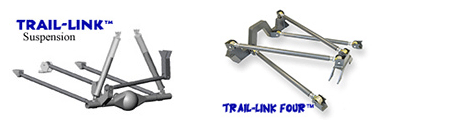

Trail Link Four Rear Link Suspension Kit
Description:
Four link your rig the easy way with the Trail-Link +FourTM kit. Innovative design allows for quick and easy installation. Crossmember fits between frame rails and supplies frame mounts for all four links. Choice of axle mounting for stock axle
BACK TO THE PARTS PAGE

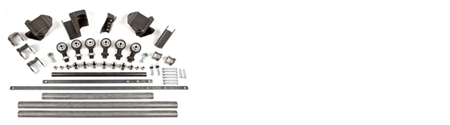

Trail Link Three Front 3 Link Kit
Description:
The Trail-Link Three Front 3-Link Kit is the only complete kit for Toyotas on the market today. This kit is affordable, user friendly, and strong. The link material is 2" x .250" wall DOM tubing, while the rod ends are 1.25'' Creeper Joints. All brackets are 1/4'' steel, formed and welded. With 14'' shocks we are getting 40'' to 50'' of articulation depending on the suspension in the rear of the truck. This kit has been extensively tested and has been in service for months on multiple trucks and has proven itself to be another superior Trail-Gear suspension product. Kit includes everything you need except your choice and size of shocks and upper shock mounts. Upper shock mounting location varies from vehicle to vehicle.
BACK TO THE PARTS PAGE

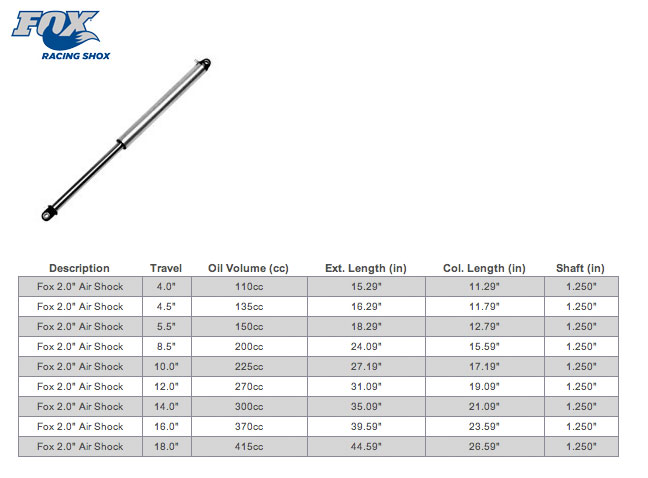

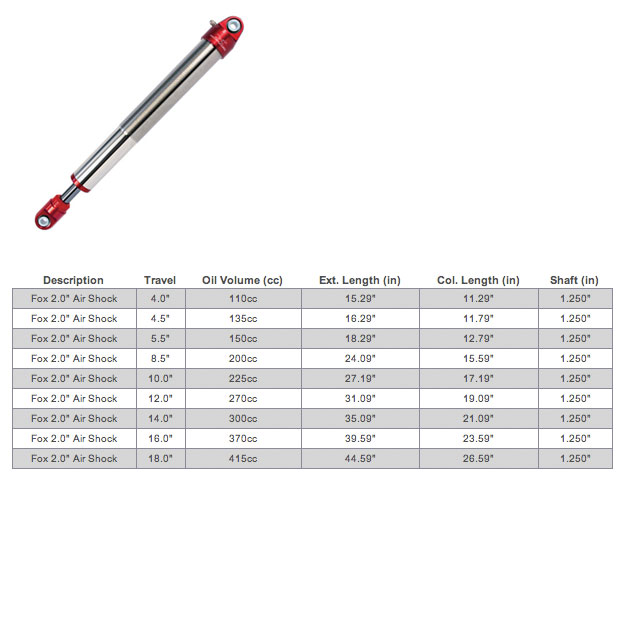

FOX AIR SHOCKS
Description:
Fox air shocks
The ones that start it all for Fox Racing Shox. Invnted by Bob Fox in 1974, the current Fox air shock line up has grown to include 2.0" & 2.5" Air Shocks as well as 2.0" & 2.5" Air Bump Stops.
Designed specifically for rock rigs, pre-runners, and sand cars. These shocks are completely adjustable to accommodate a wide range of suspension loads.
- 2.0" Diameter Race Proven Shocks
- 1-1/4" Shaft
- Tuneable and fully rebuildable
- Available in Black Hardware and a Zinc or Hard Chrome finish
- Hard Chrome finish subject to a 2-3 week delivery time
BACK TO THE PARTS PAGE

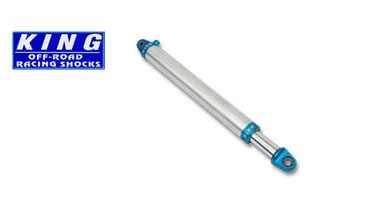

KING AIR SCHOCKS
Description:
King Air Shocks incorporate many of King's race winning components and processes making them the best rock crawling shock available. Many race winning technologies are incorporated into each shock including King's Billet Schrader Cover. Air shocks provide the unique handling characteristics that are perfect for rock buggies and other light weight vehicle applications.
BACK TO THE PARTS PAGE

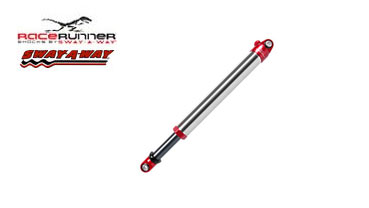

SWAY-A-WAY 2.0 AIR SHOCKS
Description:
RaceRunner 2.0'' Air Shocks were designed with the most extreme Rock Crawler in mind, and offer incredible stability and control over the most demanding rocks any trail has to offer. RaceRunner Air Shocks come standard with Com10 Teflon lined steel spherical bearings, 1 3/8'' hard-chromed chromoly tubing, and O-ring Schrader valves. RaceRunner Air Shocks offer full adjustability from 50-500psi, supports up to 1000lbs per corner and come standard with smooth Nickel plated cylinders.
BACK TO THE PARTS PAGE

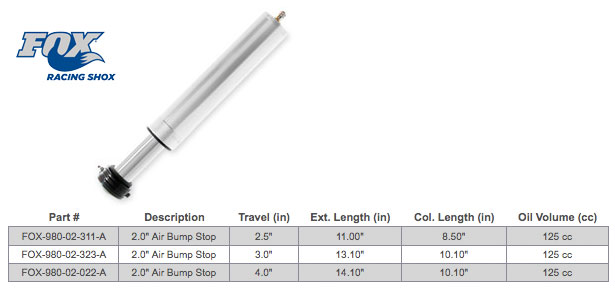

FOX AIR BUMPS
Description:
The shocks that started it all. Invented in 1974, the Fox air shock line up has grown up to included 2.0" Bump Stops. Designed specifically for rock rigs, pre-runners, and sand cars.
These shocks are completely adjustable to accommodate a wide range of suspension loads.
- 2.0" Diameter
- 1-1/4" Shaft
- Available in 2.5", 3.0", and 4.0" Travel
- Rebuildable & Tunable
- Zinc or Hard Chrome Finish
- Hard Chrome finish subject to a 2-3 week delivery time
BACK TO THE PARTS PAGE
SWAY-A-WAY 2.0 AIR SHOCKS
Description:
RaceRunner 2.0'' Air Shocks were designed with the most extreme Rock Crawler in mind, and offer incredible stability and control over the most demanding rocks any trail has to offer.
RaceRunner
Air Shocks come standard with Com10 Teflon lined steel spherical bearings, 1 3/8'' hard-chromed chromoly tubing, and O-ring Schrader valves. RaceRunner Air Shocks offer full adjustability from 50-500psi, supports up to 1000lbs per corner and come standard with smooth Nickel plated cylinders.
BACK TO THE PARTS PAGE

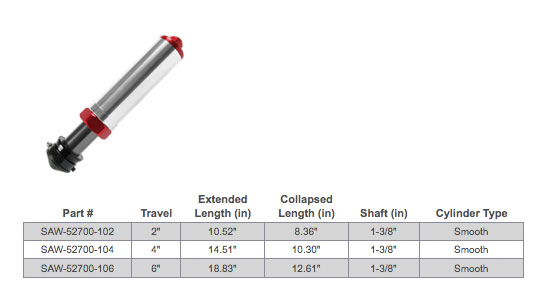

AIR BUMP STOPS
Description:
RaceRunner 2.0'' Air Shocks were designed with the most extreme Rock Crawler in mind, and offer incredible stability and control over the most demanding rocks any trail has to offer. RaceRunner Air Shocks come standard with Com10 Teflon lined steel spherical bearings, 1 3/8'' hard-chromed chromoly tubing, and O-ring Schrader valves. RaceRunner Air Shocks offer full adjustability from 50-500psi, supports up to 1000lbs per corner and come standard with smooth Nickel plated cylinders.
BACK TO THE PARTS PAGE
ALUMINUM SUSPENSION LINKS
Description:
Branded Aluminum Suspension Link
Link Diameter:
- 1-1/4" Aluminum Link
- 1-1/2" Aluminum Link
- 1-3/4" Aluminum Link
- 2" Aluminum Link
Color/Finish:
Note When ordering enter "End-to-End" length in the space provided above (see diagram below). Select size & thread rotation for "End-1" & "End-2" Note: Links are sold in 12" increments. Actual length will vary according to your End-to-End length. For example: If the End-to-End length is 22" you will be charged for 24" of material.
BACK TO THE PARTS PAGE

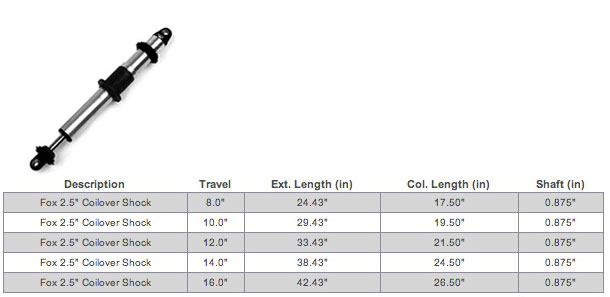

COILOVER SHOCKS
(DOES NO INCLUDE SPRINGS) SPRINGS AVAILABLE SOLD SEPARATELY
Description:
From the finish line of the Indy 500 to the deserts of dakar, Fox coilover shocks have proven themselves year after year. Most applications are designed for use with a dual stage spring set-up. Whether you are upgrading your sand rail, linking your rock rig, or building an unlimited trophy truck,Fox has a coilover shock to fit your needs.
- 2.5'' Diameter Race Proven Coilover Shocks
- 7/8'' Shaft
- Tuneable and fully rebuildable
- Available with Black Hardware and a Zinc or Hard Chrome finish
- Hard Chrome finish subject to a 2-3 week delivery time
BACK TO THE PARTS PAGE

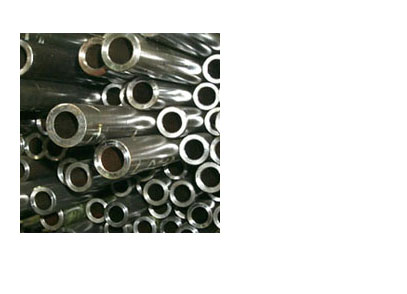

DOM TUBING
Description:
- High quality 1026 DOM
- 1.75'' OD material recommended to be used in custom 3 & 4 link suspensions
- Pricing is in per foot lengths
- Due to UPS requirements no lengths longer than 6 feet can be shipped
- Special quantity discounts are available upon request; please call for more info
- Freight is based upon the average purchased length of 5 feet (25 lbs.)

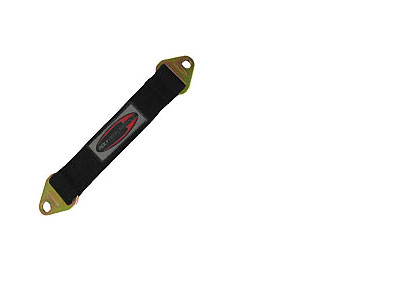

LIMIT STRAPS
Description:
- Plated end fittings are made from tough 4130 steel & have 9/16 hole
- U.S. made 1.75 nylon webbing with a 7000 lb. rating and superior flexibility
- Available in quad wrap (ultra strength)
- Eyelets have an integrated deflector clip to minimize abrasion
- Custom Lengths Available By Special Order (Call 707-586-7840)
- Limit Straps Priced Individually

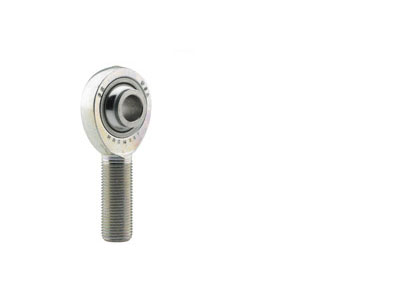

ROD ENDS
Description:
- S-4340 Body
- Heat Treated
- Heavy Duty Shank
- Zinc Plated
- Teflon Race
BACK TO THE PARTS PAGE
STANDARD COIL OVER
Description:
Standard Non-Coil/Smooth-body shocks are a great fit for any vehicle looking to improve handling and looks. Smooth body shocks are valved specifically for each application and come with many options including a polished reservoir or body for the ultimate in great looks out in the dunes, desert or on the street.
Standard Coil-Over shocks are a great fit for any vehicle looking to improve handling and looks. Smooth body shocks are valved specifically for each application and come with many options including a polished reservoir or body for the ultimate in great looks out in the dunes, desert or on the street.
2-Tube Bypass w/ Piggyback Reservoir shocks. Adding bypass tubes to any shock allows for more adjustability and superior handling. Bypass tubes are position sensitive and are used for compression and extension control.
- + - .001 honed cylinder bores
- 7075 hard anodized aluminum piston
- Special piston prevents valve breakage
- High carbon, heat-treated steel shaft
- Special urethane long-life seals
- Heat treated stainless steel valving
- Teflon lined stainless spherical bearings
- Available rubber bushings for spherical bearing alignment
- King off-road specific springs (Coil-Over only)
- Available Lengths from 6" - 16"
BACK TO THE PARTS PAGE

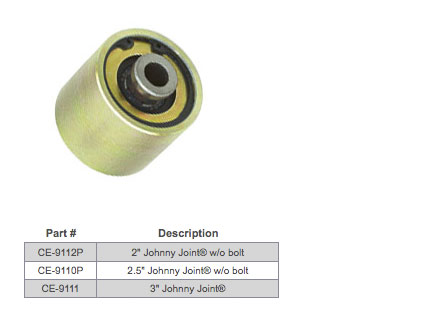

JOHNNY JOINTS
Description:
For fabricators and suspension system builders. Currie's Johnny Joints offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint. The bushings in the Johnny Joint rod ends are made with a high-density, "tough 88" urethane that encases the inner ball. It is a very durable material, and is impervious to weather. The special center ball is heat-treated steel for extra strength, cross-drilled for thru-bolt lubrication, features a 7/16" thru bolt hole, and a 2" mounting width. The outer shell is .180" DOM tubing, and the retaining washers are heat-treated steel. Sold individualy.
BACK TO THE PARTS PAGE
SWAY COIL OVERS
Description:
Racerunners 2.0'' Shocks are ideal for off-road buggies, long travel sand cars, extreme rock crawlers, performance street vehicles, and as coil carriers to be accompanied by either a 2.5'' or 3.0'' bypass shock. Quality, design and innovative construction provide superior suspension control and durability. Shock travel ranges from 6'' to 16'' in 2'' increments. All 2.0''shocks come standard with Nickel plated cylinders, high strength 7/8'' Nitro Steel shafts that will not chip or rust & are fully rebuildable and revlavable. Shock bodies are threaded for both single & dual rate applications, and use standard 2.5'' I.D. coil springs. RaceRunner 2.0'' shocks come equipped with high strength Com 10 Teflon lined steel spherical bearings for high performance racing applications.
BACK TO THE PARTS PAGE
