HYDRO STEERING KITS & PARTS

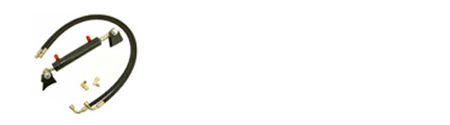

Rock-AssaultTM Ram Steering
The Rock-AssaultTM Ram Steering assist kit is the best kit you will find anywhere! Our Toyota kit features a 6" X 1.5" stroke hydraulic ram with high temp inner and outer seals for long life and no leaks. Our specially designed ram features a 3/4" rod that is 50% stronger than other 1/2" rods on the market. For Dana knuckle applications we also offer an 8" stroke version.
Our specially formed, easy to install brackets make installing our kit a breeze. If you have looked at other kits on the market, you will see they either don't include mounts or they just provide generic tabs. Our mounting hardware is specially designed to fit the Toyota axle and High Steer. Once the steering box has been tapped, installation of the ram takes about one hour. Each bracket is formed from heavy-duty 1/4" plate steel for extra strength. Fits 1979 - 1995 Toyota Pickup and 4Runner with solid front.
BACK TO THE PARTS PAGE
Rock-AssaultTM Ram Steering

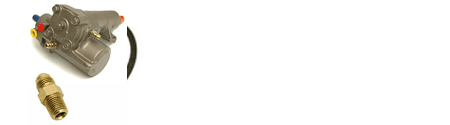

Looking for a steering box for your hydro assist steering system? We now have in stock Toyota IFS steering boxes that are drilled and tapped for hydro assist steering. Two # 6 JIC fittings are installed. After tapping, each box is thoroughly flushed and fully rebuilt. 1986-1988 Style box.
If you're the type that wants to tap your own box, we have the fitting you need to do it. The fitting has a male 1/4" pipe fitting on one end and male #6 JIC fitting on the other end. Two fittings are required for each steering box.
BACK TO THE PARTS PAGE

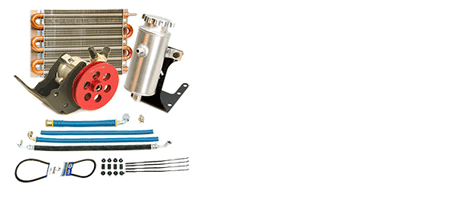

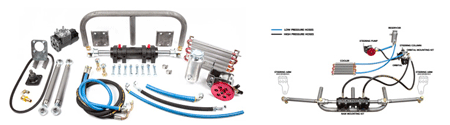

Toyota Full Hydraulic Steering Kit
Proud to bring you the first complete Full Hydraulic Steering Kit for a Toyota. This kit comes with everything needed to build a fully hydraulic steering system. All mounting brackets are included and have been specifically designed for Toyota applications and ease of installation. This kit takes all the guess work out of setting up a hydraulic steering system. The pump has an all steel housing and puts out 4.5 GPM of flow and 1650 PSI of pressure. All high pressure hoses are steel braided with crimped-on ends. This kit is ideal for use with links and also works with most leaf spring applications.Our kitis the most user friendly kit on the market, we thought of everything so you don't have to.
BACK TO THE PARTS PAGE

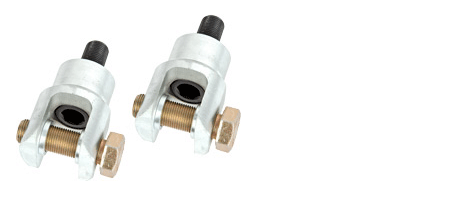

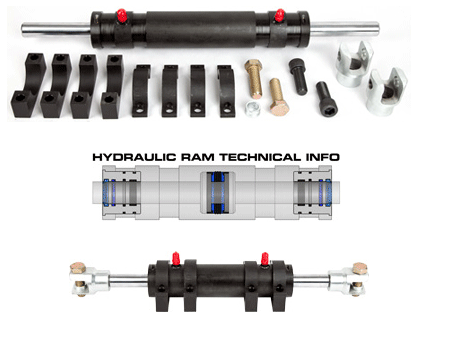

Rock Assault Double Ended Ram and Clevis Kits
Through years of research development and testing we at we have developed double ended ram to meet the demands of top level rock crawling competitors and the toughest trails in the world. Based on our experience we knew exactly what we wanted in a ram and what we didn't.
Most rams on the market only have one rod seal.We started with the primary and secondary rod seal to insure that fluid leakage would never be an issue. We also included two wiper seals in our design to make sure that dirt and debris stay on the trail and don't get into your steering system. In addition,we designed our ram with a Triple Lip Piston Seal for consistent steering with no drift or fluid bypassing the piston.
In true Trail-Gear style we also had to make our ram the strongest on the market, so we added a feature that you will not see on any other ram on the market.We designed ours with a piston wear band and a rod bushing.The bushing allows the rod to absorb much higher side loads We also machined our piston shaft out of a single piece of Other rams on the market use a two-piece welded or threaded piston shaft that can fail under severe loads.
BACK TO THE PARTS PAGE

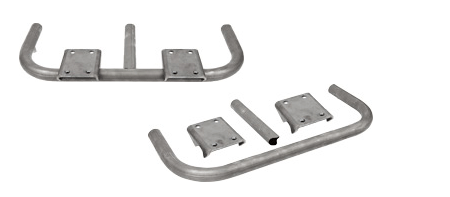

(Available Seprately for double ended rams)Double Ended Ram Mounting Kit
This kit will take almost all the fabrication work out of mounting your Rock Assault Double Ended Ram and Clevis Kit to almost any axle housing. The main support tube is 1.5" diameter, .120" wall, 1035 DOM, comes pre-bent, and can be trimmed to size and coped on the ends for a custom fit. The formed mounting plates are not welded to the tube so you can move them to the left or right to center the ram on the axle. We include a support tube, but on certain axles additional gussets may be required. Product is shipped unpainted.
BACK TO THE PARTS PAGE

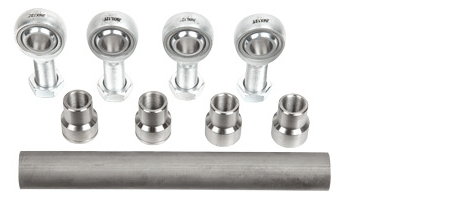

Tie Rod Kit
Gear uses only our own brand of Chromo Rod Ends. The main body of each rod end is 100% 4340 chromoly, and the ball of each rod end is made out of AISI 52100 material and then hard chrome-plated for an extremely tough finish. We also added tie rod tubing that is 100% seamless DOM, and to top it off the weld in bungs are machined out of solid billet. With these components in place we feel that this kit is so strong it stands apart from every other kit on the market This kit is also perfect match for our Rock Assault Double Ended Ram and Clevis Kits.
BACK TO THE PARTS PAGE

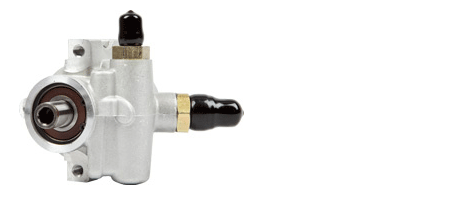

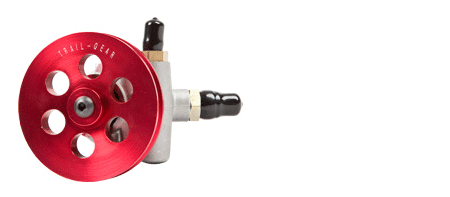

1,650PSI Power Steering Pump without Pulley
This TC style power steering pump is the best of the best It features an all steel housing to handle extreme heat puts out an amazing 4.5 GPM of flow and 1,650PSI of pressure.Pump has #6 JIC male on pressure port and #10 JIC fitting on suction side.Each pump is bench tested to ensure quality. This pump will run all full hydraulic applications popularly used in rock crawling today. Pulley not included.
Note: Using anything other than a power steering pulley installer to install your pulley on this pump will void the warranty. Never use ATF fluid, or a semi-synthetic blend. This will void the warranty.Ok to use standard power steering fluid or a full synthetic.
Royal Purple fully synthetic power steering fluid recommended.
BACK TO THE PARTS PAGE
High Pressure Power Steering pumps
The stock Toyota pump is just barley able to supply the volume and pressure needed to run Hydraulic assist steering. The stock pump puts out 1,300 psi @ one gallon per minute. The stock pump is not able to provide enough fluid to run both the stock steering and the demands of a ram, especially at low RPM's. Drilling out the restrictor plates in a stock pump for more volume often leads to pump failure.The answer is a replacement "TC" style pump. The Trail-Gear Rock-AssaultTM pump puts out 1,450 psi of pressure at 4 gallons per minute. This provides the full fluid volume your steering box and ram are looking for even at an idle
BACK TO THE PARTS PAGE
Rock-Assault Steering Pump Kit
The stock Toyota pump is just barley able to supply the volume and pressure needed to run Hydraulic assist steering. The stock pump puts out 1,300 psi @ one gallon per minute. The stock pump is not able to provide enough fluid to run both the stock steering and the demands of a ram, especially at low RPM's. Drilling out the restrictor plates in a stock pump for more volume often leads to pump failure.The answer is a replacement "TC" style pump. The Trail-Gear Rock-AssaultTM pump puts out 1,450 psi of pressure at 4 gallons per minute. This provides the full fluid volume your steering box and ram are looking for, even at an idle.Pump kit includes pump, pump bracket, reservoir, reservoir bracket, belt, fittings, hoses, & hardware. Pump kit is designed to work with stock or ram drilled IFS power steering boxes. Application Notes: This pump and bracket is designed to fit all Toyota 4cyl 4wd motors from 1979 - 1995. A large power steering fluid cooler (included) is required on the low pressure side of the system. Pump bracket works in conjunction with stock idler bracket. If your truck is not currently equipped with power steering, you will need to purchase the idler bracket and replace the steering gear box with one designed for use with power steering. The stock fan belt will not work with this pump and will need to be replaced with Napa # 9440 belt. Belt is included with kit.
Note: Never use ATF fluid, or a semi-synthetic blend. This will void the warranty.
Ok to use standard power steering fluid or a full synthetic.
Royal Purple fully synthetic power steering fluid recommended.
BACK TO THE PARTS PAGE

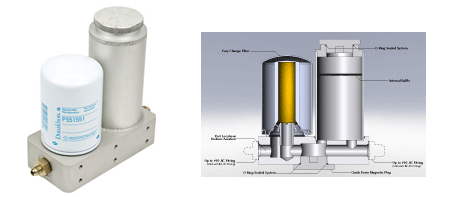

Reservoir Filter Kit
When you have invested thousands of dollars into your full hydraulic steering system, you will want to protect it with the best reservoir and filter that you can get.That is why Trail-Gear has developed our new Rock Assault Reservoir.It is not only heavy duty, but also compact and user friendly. It features a full size hydraulic oil filer that will keep all the bad stuff out of your power steering pump and hydraulic ram. Our Rock Assault Reservoir also comes with an internal baffle, features two internal magnets, and is completely sealed with top quality o-rings to prevent any fluid leakage. This reservoir also has a quick drain plug that is located at the bottom of the unit that will allow you to easily drain your system in minutes. Our unique fluid flow design is rated up to 15GPM and allows you to use your steering system while the truck is on its side or at other unusual angles that it might incur during rock crawling or desert racing.
BACK TO THE PARTS PAGE

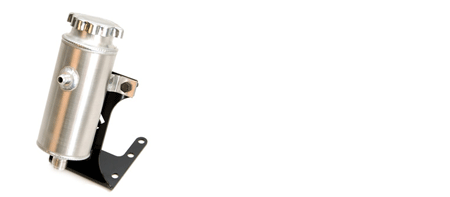

Reservoir & Bracket
When installing a high flow pump such as the one listed above, it is important to use a larger reservoir to provide enough fluid when the system needs it. The sock reservoir is fine for the stock pump but is not adequate for the TC style aftermarket pumps. Side input of reservoir is a #6 JIC fitting and the bottom outlet to pump is a #10 JIC fitting. Reservoir includes cap.
Reservoir bracket makes it easy to bolt in the reservoir on most 4cyl 4X4 Toyota applications from 1979 - 1995. Includes mounting hardware. Unpainted finish.
BACK TO THE PARTS PAGE

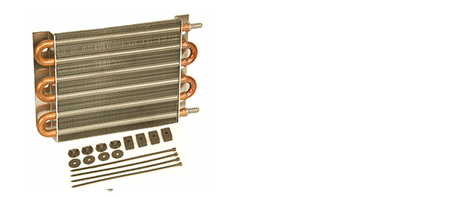

Steering Fluid Cooler
If your running a high volume/pressure pump your system is generating much more heat then the stock system. Fluid overheating can cause damage to steering pump and steering box. Installing a oil cooler in front of the radiator is the best way to prevent this over heating. Our cooler features a fin area of 9" X 8" and does a great job of keeping the steering fluid temps under control in all conditions.
BACK TO THE PARTS PAGE

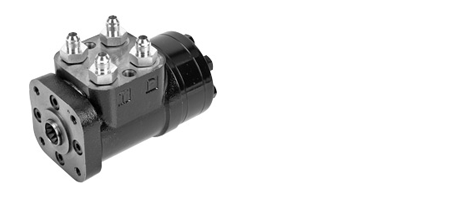

Orbital (Steering Control Valve)
(steering control valves) have a flow rate of 5.8 GPM and a built in return-to-center function. This means that when the driver releases the wheel the tires will automatically return to the center position. This is a convenient feature that allows for slow rock crawling or driving at higher speeds. The amount of turns it takes to get from lock to lock will depend on what ram you combine with your orbital. We have included a chart that will tell you exactly how many turns it will take to get from lock to lock with the different orbital/ram combinations, with the recommended combinations in bold blue letters.
BACK TO THE PARTS PAGE

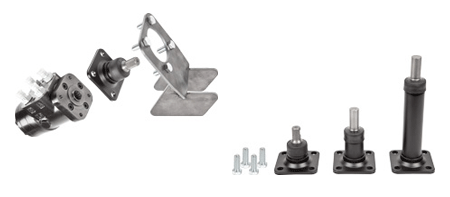

Steering Columns
This steering column will allow you to use your existing Toyota steering linkage without having to buy a coupler and then cut and weld on your steering shaft. This steering column measures 3 1/4 inches from the base of the flange to the outer edge of the shaft, and fits most brands of steering valves (Orbitals) that are commonly used in this application.
130298-1 - This steering column measures 4 3/4 inches from the base of the flange to the outer edge of the shaft, the OD of the shaft is 3/4 inches and the shaft itself is round with no splines, it is a blank. This column will fit most popular steering valve applications currently used in off-roading.
130299-1 - This steering column measures 8 3/4 inches from the flange to the outer edge of the shaft, the OD of the shaft is 3/4 inches and is round with no splines. This kit can be used with a coupler and a steering shaft. Fits most popular steering valves used for rock crawling.
BACK TO THE PARTS PAGE

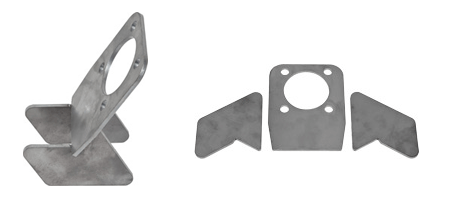

Orbital Mounting Kit
Finally an easy way to mount your orbital without all the measuring and fabrication work. This kit is so simple that anyone with basic welding skills can have it fully installed in under an hour. The 3 plates that make up the kit are laser cut out of 3/16 inch steel, and precision machined for a perfect fit. This kit will fit most standard style orbitals used in this application. Kit is shipped unpainted and unwelded.
BACK TO THE PARTS PAGE
